| PLASMA CUTTER/LGK IGBT INVERTER CUTTING MACHINE SPECIFICATON:等离子切割机 | |||||||

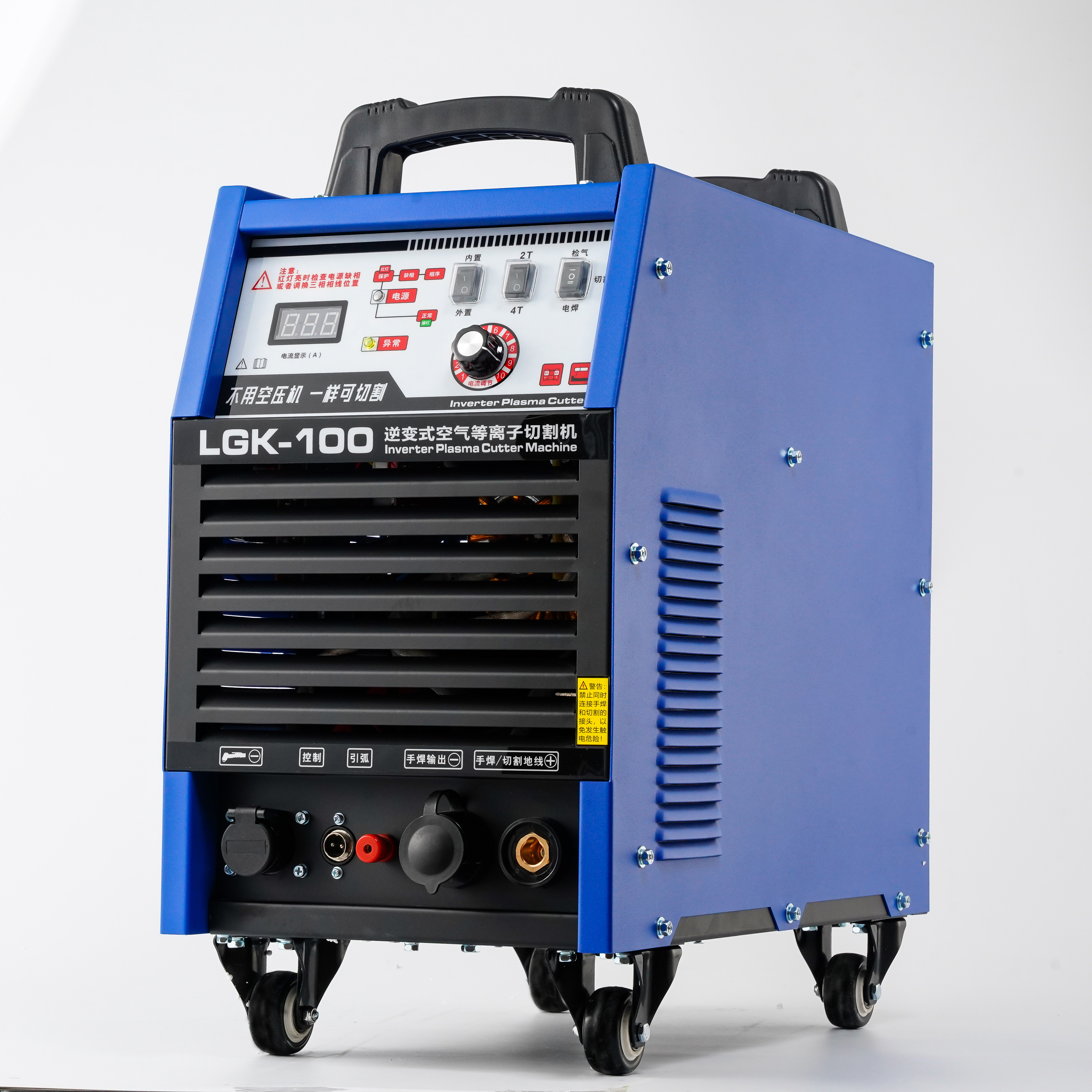

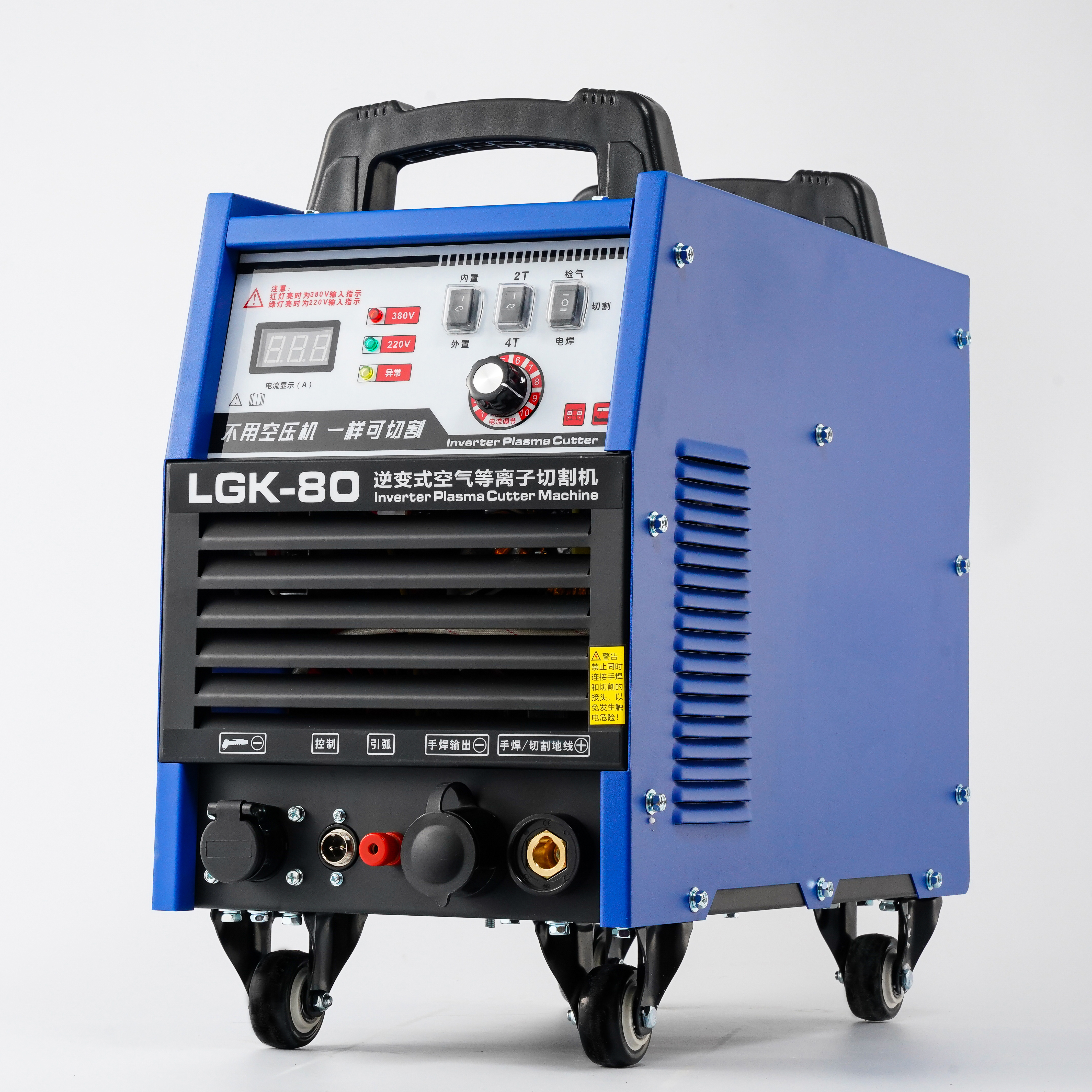

| Parameter Model | LGK/CUT40 220V | LGK/CUT60 | LGK/CUT70 380V | LGK/CUT80 380V | LGK/CUT100 380V | LGK/CUT120 380V | LGK/CUT160 380V |
Rated input Voltage(V) 额定输入电压： | Single phase AC220V±15% | Three phase AC380V±15% | Three phase AC380V±15% | Three phase AC380V±15% | Three phase AC380V±15% | Three phase AC380V±15% | Three phase AC380V±15% |
Rated input Capacity(KVA) 额定输入电源容量： | 6.6KVA | 7.6KVA | 9KVA | 11.5KVA | 14.5KVA | 18.2KVA | 28.3KVA |
Rated input Current(A) 额定输入电流 | 10A | 12A | 14A | 16.2A | 20A | 27.6A | 44A |
| Rated output Voltage(V) 额定输出电压： | 96V | 100V | 108V | 112V | 120V | 128V | 144V |
| No load Voltage(V) 无负载电压： | 250V | 370V | 370V | 370V | 370V | 370V | 370V |
Output current range(A) 输出电流范围： | 20-40 | 20-60 | 20-70 | 20-80 | 20-100 | 20-120 | 20-160 |
| Protection class 保护等级： | IP21 | IP21 | IP21 | IP21 | IP21 | IP21 | IP21 |
Power factor 功率因数： | 0.73 | 0.83 | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
| Cutting Thcikness（mm) 切割厚度 | 5mm | ≥10mm | ≥12mm | ≥15mm | ≥30mm | ≥50mm | ≥60mm |
| Insulation class 绝缘等级 | F | F | F | F | F | F | F |
| Machine size(mm) 机器尺寸： | 37.5*15*24 | 48*20.5*30.5 | 47*24*43 | 47*24*43 | 47*24*41 | 47*24*41 | 47*24*43 |
Packing size(mm) 包装尺寸 | 45.5*27*34.5 | 58*30*40.5 | 58*30*45 | 58*30*45 | 58*30*45 | 58*30*45 | 58*30*48 |
